Product Details
Place of Origin: China
Brand Name: CNNT
Certification: UL CUL CE VDE CQC
Model Number: DRTB5-HESI
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: Negotiation
Packaging Details: carton
Delivery Time: 3 weeks
Payment Terms: T/T
Supply Ability: 5000 PCS
Screw: |
M3.0 |
Application: |
Wire Connecting |
Housing: |
PA66 UL94, V-0 |
Rated Current: |
10A |
Rated Voltage: |
600V |
Torsion: |
0.6Nm |
Operate Temperature: |
﹣40°C~ ＋120°C |
Wire Range: |
20-6 AWG |
Screw: |
M3.0 |
Application: |
Wire Connecting |
Housing: |
PA66 UL94, V-0 |
Rated Current: |
10A |
Rated Voltage: |
600V |
Torsion: |
0.6Nm |
Operate Temperature: |
﹣40°C~ ＋120°C |
Wire Range: |
20-6 AWG |

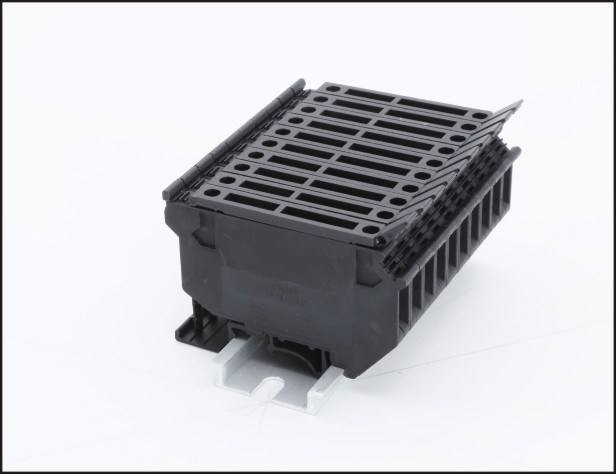

PA66 / UL94-V0 Brass Rail terminal 10A / 600V M3 Screw 8.2mm Element width
Rail terminal Description:
Width 8.2mm, 600V 10A,
Standard color: Green. Other colors also available.
Rail terminal Applications:
They can be used in a lot of industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.
Technical Data:
| DRTB5-HESI Techbical Data | |
| Rigid Soild | 0.2-4.0 mm² |
| Flexible Stranded | 0.2-4.0 mm² |
| Rated Current | 10A |
| Rated Voltage | 600V |
| Screw | M3 |
| Insulation material | PA66/V0 |
What we can provide:
1. We are factory, with trading service. We provide OEM / OEM service.
2. Lead time : 21 days.
3. Quick reply.
Company Introduction :
CNNT has nearly 20 years of experience in the electric connection interface industry. Our engage in electrical connectors, automotive connectors, 5G communication connectors, photovoltaic storage.
We can offer precision mold which suitable for your company. R & D customization business. With a team engaged in connector research and development experience for more than 10 years, engineering staff from many well-known industry and famous enterprises such as (Amphenol, Phoenix, etc.)
We can provide different connection solutions in various fields, and also have rich experience in successfully customizing products for famous customers around the world.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Whether the pitch and holes can be randomly selected?
Yes pitch and holes can choose by yourself.
4. Do your company have agent in over sea?
No, we have our over sea department.
Competitive Advantage:
1.Stable good quality
2. Competitive price
3.Quickly response
4.Full range products for selection
5. OEM and OMD service
