Product Details
Place of Origin: China
Brand Name: CNNT
Certification: UL CUL CE VDE CQC
Model Number: ERTB25-XX-F
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3 weeks
Payment Terms: T/T
Supply Ability: 5000 PCS
Color: |
Green / Black / Grey / Orange |
Screw: |
M6. Steel, Zinc Plated |
Application: |
PCB Multiple Functions,Wire Connecting |
Contact Resistance: |
20mΩ,Less Than 8mΩ |
Rated Voltage: |
1000V |
Rated Current: |
125A |
Poles: |
2-12 Poles |
Pitch: |
15.00mm |
Color: |
Green / Black / Grey / Orange |
Screw: |
M6. Steel, Zinc Plated |
Application: |
PCB Multiple Functions,Wire Connecting |
Contact Resistance: |
20mΩ,Less Than 8mΩ |
Rated Voltage: |
1000V |
Rated Current: |
125A |
Poles: |
2-12 Poles |
Pitch: |
15.00mm |

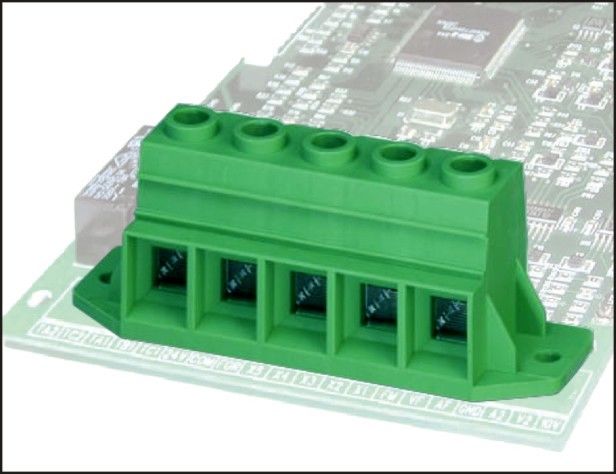

UL94-V0 / PA66 Brass / Copper / Steel PCB Teminal Block 125A /1000V 15.00 Pitch M6 screw
ERTB Series Application:
ERTB series terminals are welded directly to the PCB board. The PCB uses terminals to connect wires to realize signal or current transmission. It is one of the most widely used products that can be welded to the printed circuit board. ERTB series of products with 02 and 03 bits as the basic unit, can provide any combination of bits, some models integrated structure design, can provide 02-24 any combination of bits.
Selling points:
1. flame retardant rating : PA66 , UL94, V0, excellent electrical and weather resistance.
2. Metal parts made of high - quality steel, brass, phosphor bronze, copper.
3. Plating protection layer : nickel, tin , zinc.
Specification:
| Technical Data | |
| Poles | 2-12 poles |
| Pitch |
15.00 mm |
| Rated Voltage | 1000V |
| Rated Current | 125A |
| Wire Size | 20-2AWG |
| Torsion | 1.7 Nm |
| Rated Surge Voltage | AC6000V 1min |
| Solid | 35.0 mm² |
| Stranded | 25.0 mm² |
| With plastic Sleeve | 25.0 mm² |
| Screw | M4 Steel,zinc plated |
| terminal | Brass, Tin Plated |
| Cage Clamp | Brass, Ni Plated |
Drawing:
What we can provide:
1. We are factory, with trading service. We provide OEM/OEM service.
2. Lead time : 21 days.
3. Quick reply.
Company Introduction :
CNNT has nearly 20 years of experience in the electric connection interface industry. Our engage in electrical connectors, automotive connectors, 5G communication connectors, photovoltaic storage.
We can offer precision mold which suitable for your company. R & D customization business. With a team engaged in connector research and development experience for more than 10 years, engineering staff from many well-known industry and famous enterprises such as (Amphenol, Phoenix, etc.)
We can provide different connection solutions in various fields, and also have rich experience in successfully customizing products for famous customers around the world.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Whether the pitch and holes can be randomly selected?
Yes pitch and holes can choose by yourself.
4. Do your company have agent in over sea?
No, we have our over sea department.
