Product Details
Place of Origin: China
Brand Name: CNNT
Certification: UL CUL CE VDE CQC
Model Number: QCTB25V
Payment & Shipping Terms
Minimum Order Quantity: 100 PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3 weeks
Payment Terms: T/T
Supply Ability: 5000 PCS
Application: |
Wire Connecting |
Housing: |
PA66 |
Color: |
White |
Element Width: |
15.1mm |
Temperature: |
﹣40°C ~＋120°C |
Screw: |
M6.0 |
Metal Walls: |
1 To 2.5 (500V) , 2.5 To 4 (300V) , |
Plastic Walls: |
1 To 4 (600V) |
Application: |
Wire Connecting |
Housing: |
PA66 |
Color: |
White |
Element Width: |
15.1mm |
Temperature: |
﹣40°C ~＋120°C |
Screw: |
M6.0 |
Metal Walls: |
1 To 2.5 (500V) , 2.5 To 4 (300V) , |
Plastic Walls: |
1 To 4 (600V) |

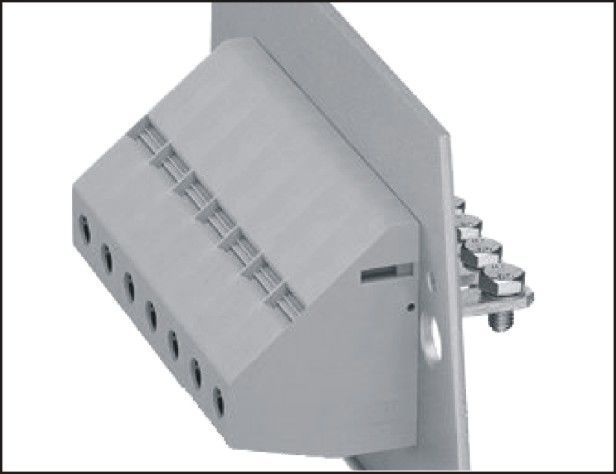

UL94-V0 PA66 / V0 Through Wall Terminal Block 125 A / 500V 15.1mm Element width M6 Screw
Through Wall Terminal Block Description:
Width 15.1 mm, 500V 125A,
Standard color: White. Other colors also available.
Through Wall Terminal Block Application:
The through-wall terminal can be arranged side by side on the panel with thickness of 1mm-10mm, and the distance of compensating the thickness of the panel can be automatically adjusted to form any series of terminal block. The through-wall terminal can be installed in the rectangular reserved hole on the panel without any tool edge, which is extremely convenient to install.
Data Sheet:
| QCTB25 Technical Data | |
| Electrical parameters | 500V 125A |
| Rated Voltage | 600V |
| Rated Current | 100A |
| Stripping length | 19 mm |
| Torsion | 3.0 Nm |
| Rated Surge Voltage | AC2000V 1min |
| Rigid Solid | 6-35 (mm²) |
| Flexible Stranded | 10-25 (mm²) |
| Zack Strip | QB-12 |
| Screw | M6 |
Selling points:
1. flame retardant rating : PA66 , UL94, V0, excellent electrical and weather resistance.
2. Metal parts made of high - quality steel, brass, phosphor bronze, copper.
3. Plating protection layer : nickel, tin , zinc.
What we can provide:
1. We are factory, with trading service. We provide OEM/OEM service.
2. Lead time : 21 days.
3. Quick reply.
CNNT has nearly 20 years of experience in the electric connection interface industry. Our engage in electrical connectors, automotive connectors, 5G communication connectors, photovoltaic storage.
We can offer precision mold which suitable for your company. R & D customization business. With a team engaged in connector research and development experience for more than 10 years, engineering staff from many well-known industry and famous enterprises such as (Amphenol, Phoenix, etc.)
We can provide different connection solutions in various fields, and also have rich experience in successfully customizing products for famous customers around the world.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Whether the pitch and holes can be randomly selected?
Yes pitch and holes can choose by yourself.
4. Do your company have agent in over sea?
No, we have our over sea department.
