Product Details
Place of Origin: China
Brand Name: CNNT
Certification: UL CUL CE VDE EQC
Model Number: HSTB3-B/S-R4
Payment & Shipping Terms
Minimum Order Quantity: 100 Sets
Price: Negotiation
Packaging Details: Carton
Delivery Time: 3 weeks
Payment Terms: T/T
Supply Ability: 5000 Sets
Rated Current: |
150A |
Rated Voltage: |
AC 1000V |
Jack: |
HSTB4-B-12# |
Screw: |
HSTB20 Screw |
Operate Temperature: |
﹣55°C~ ＋125°C |
Withstand Voltage: |
AC 3000V |
Rated Current: |
150A |
Rated Voltage: |
AC 1000V |
Jack: |
HSTB4-B-12# |
Screw: |
HSTB20 Screw |
Operate Temperature: |
﹣55°C~ ＋125°C |
Withstand Voltage: |
AC 3000V |

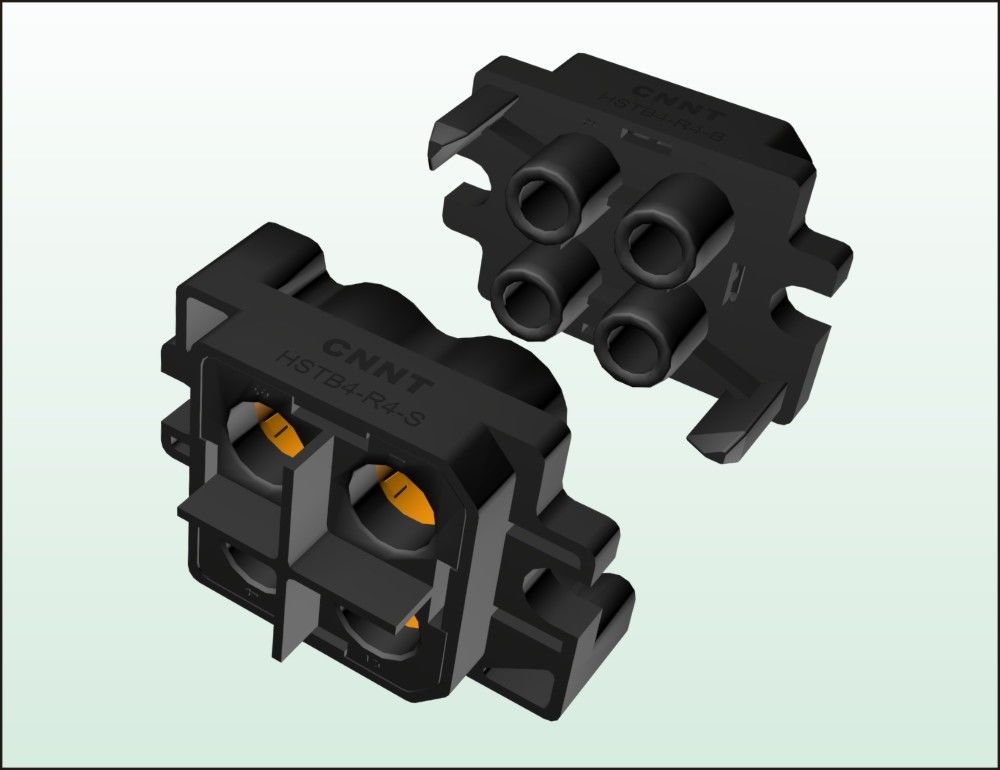

PBT / UL94-V0 Electrical Connector Blocks 150A 1000V Operate With Jack And Screw
Electrical Connector Blocks Application:
1,They can be used in a lot of industries, such as Frequency Converters, Server Site,
2, Industry Control, Automation, Rail Transportation, Security,
3,Medicine Equipment, Military, Elevator and so on.
Technical Data:
| HSTB4-B-S-R4 Technical Data | |
| Mechanical Life | 500 times |
| Insulation Resistance | ≥1000MΩ |
| Contact | Power |
| Rated Current | 150A |
| Rated Voltage | AC 1000V |
| Spec | Φ8 |
| Withstand Voltage | AC 3000V |
What we can provide:
1. We are factory, with trading service. We provide OEM / OEM service.
2. Lead time : 21 days.
3. Quick reply.
Operating Temperature
| Operating Environment | |
| Temperature | ﹣55°C~ ＋125°C |
| Rated Temperature | 98%(40°C) |
| Vibration | 10~2000Hz (a=147m/s²) |
Competitive Advantage:
1.Stable good quality
2. Competitive price
3.Quickly response
4.Full range products for selection
5. OEM and OMD service
Company Introduction :
CNNT has nearly 20 years of experience in the electric connection interface industry. Our engage in electrical connectors, automotive connectors, 5G communication connectors, photovoltaic storage.
We can offer precision mold which suitable for your company. R & D customization business. With a team engaged in connector research and development experience for more than 10 years, engineering staff from many well-known industry and famous enterprises such as (Amphenol, Phoenix, etc.)
We can provide different connection solutions in various fields, and also have rich experience in successfully customizing products for famous customers around the world.
FAQ:
1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are factory, with trading service. We provide OEM/OEM service.
2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
3. Whether the pitch and holes can be randomly selected?
Yes pitch and holes can choose by yourself.
4. Do your company have agent in over sea?
No, we have our over sea department.
